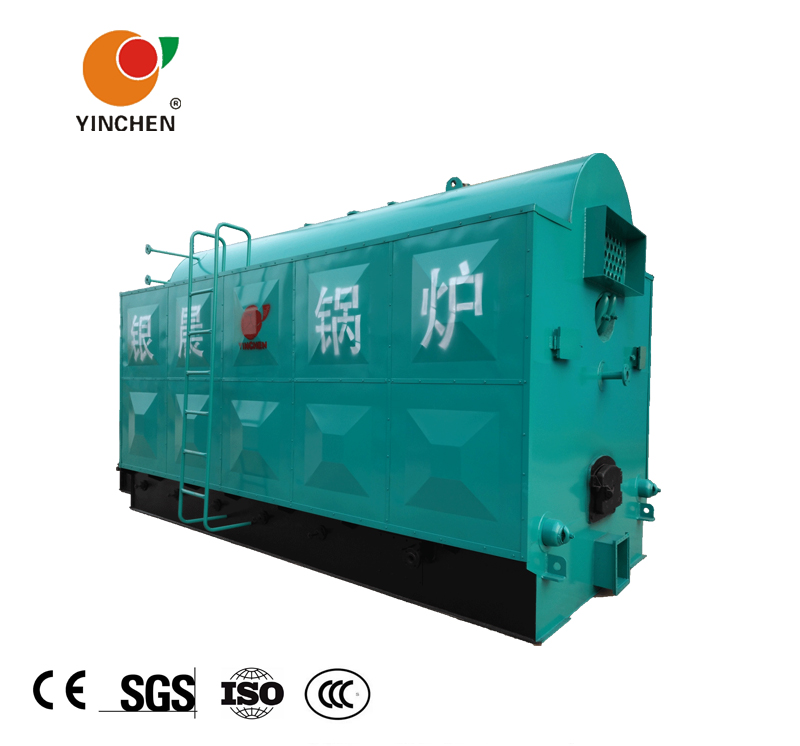

Industrial High Temperature Coal Fuel 2ton Steam Boiler With CE
Certificates
| Apply Fuel: coal, wood/wood pellets, biomass, rice husk pellets, straw
pellets and so on. |
| Payment Terms: 30% T/T in advance ,70% before factory delivery. |
| Lead Time: About 10-15 days after received the down payment. |
Boiler Application:
1. Chemical industry, plastics industry, coatings and automotive
industry, leaching industry,
2. Construction equipment industry, shipbuilding industry.
3. Garment making, washing and ironing,
4. Pharmaceutical industry, biological engineering, food industry.
5. Sauna cosmetology, hotel hotel, physical fitness, school.
6. Scientific experiment.
Boiler Feature:
♦ Spirally corrugated tube
Function: (1) Heat transfer enhancement; (2) Improve the suppleness
to avoid the tube plate cracking; (3) Clean groove itself.
♦ Arched tube plate
reduce the thermal stress of weld; improve the tube plate
suppleness; simplify the structure and save the boiler room space.
♦ Complete protection device
Function: deal with the situation of over pressure,
over-temperature, water shortage and flame out.
♦ Up-tube layout
Function: (1) Avoid the bulging on boiler drum; (2) Promote the
water cycle (3)clean the sediment in the boiler bottom.
♦ Airfoil flue
Function: Lower the high temperature of tube plate flue gas. And
then reduce the thermal load of the boiler bottom.
♦ The return water injector
Function: Increase the reliability of the water circulation and
avoid the booster caused by the poor circulation.
Moving Grate
Moving grate boiler could resist the temperature as high as 1200℃,
long working life. It has a low coal leakage because of the small
gap. High automatic degree, decrease labor cost. Convenient for
maintenance, it could be done without boiler shut down.
Economizer
Economizer is the boiler tail flue in the boiler feed water heated
to the steam pressure under the saturated water heating surface,
because it absorbs relatively low temperature flue gas, reducing
the smoke exhaust gas temperature, saving energy, improve the
efficiency.
Steam Header
The steam header is used to distribute the steam generated by the
boiler during operation to the pipelines. The sub-cylinder system
is a pressure vessel, and its pressure-bearing capacity and
capacity should correspond to the supporting boilers.
Feed Pump
Feed pump is deaerator tank with a certain temperature of the water
supply to the boiler. It is suitable for conveying clean water with
temperature lower than 110C or other non-corrosive liquids whose
physical and chemical properties are similar to water. It is widely
used in boiler feed water and urban water supply in industrial and
mining enterprises.
Boiler Technicals
| DZH Series New-type Fire and Water Tube Steam Boiler |
| Type | Rated Evaporation
(t/h) | Rated Steam Pressure
(Mpa) | Steam
Temperature
(℃) | Heating Area
(M³) | Grate Area
(M³) | Size
L×W×H
(m) |
| DZH1-0.7- AII | 1 | 0.7 | 170 | 36.5 | 1.9 | 3.9×1.85×3.12 |
| DZH1-1.0- AII | 1 | 1.0 | 184 | 39.4 | 1.9 | 3.9×1.85×3.12 |
| DZH2-0.7- AII | 2 | 0.7 | 171 | 53.6 | 3.74 | 4.5×2.24×3.32 |
| DZH2-1.25- AII | 2 | 1.25 | 194 | 73.6 | 3.74 | 4.5×2.24×3.32 |
| DZH4-1.25- AII | 4 | 1.25 | 194 | 146.03 | 3.93 | 5.3×2.44×3.6 |
Henan Yinchen Boiler Group Co.,LTD. was founded at the beginning of
2001, which has a registered captical of 51.66 million. Its
headquarters is in the industrial district in Fucaolou town,
Taikang county of Henan province. The production factory is
adjacent to Yong Deng high-speed,and the 311 national road is also
through this district,so it has very convenient transportation
conditions.Besides, it is one of the key leading enterprises which
firstly get the National Boiler Manufacturing license. With the
manufacturing license qualification of "B" class boiler and
"D2"class pressure vessel, it is director of China Industrial
Boiler Association, member unit of China Welding Association and
the enterprise of emphasizing the contract and credit in Henan
province. The products have already passed ISO9001-2000
international quality system certification.
Our service
1. We will reply your inquiry in 24 hours.
2. Experienced staffs will answer all your questions in fluent and
professional English.
3. Customized design is available.
Guarantee: One-year warranty and full-life service for all of our steam
boilers;
A full range of original spare parts are available for all YINCHEN
boilers
Pre-sales Service: Based on customers’ request and budget, our experts make
efficient, reliable
solutions, and we produce strictly following customers’ order.
Every customer has the chance to visit
our workshops before placing the order. And we help to arrange
cars, hotels, and the translators for
every visiting customer.
After-sales Service: Experienced technicians guidance is available on the phone, and on
the internet.
One or more engineers will be dispatched to the installation site
to help install the customers’ boilers.
We also provide necessary training about boiler operation and daily
maintenance to local workers.
FAQ
How to choose a boiler type?
Identify the type of boiler you want(steam boiler or hot water
boiler).
The boiler capacity,pressure,and fuel(oil,gas,biomass,coal),or you
can consult us.
How about the installation?
Guide installation online or we can provide staff installation by
our staffs, but you have to afford the extra cost if If we send
professional staff overseas to install it.
How about your delivery time?
Generally, it will take 10 to 15 days after receiving your advance
payment. The specific delivery time depends on the items and the
quantity of your order.
What about after-sale service?
We will supply professional after-sale service team as soon as we
receiving your problem feedback, we will dispatch our engineers to
your country and solve your problems right now.
And you have other questions and Suggestions, please feel free to
ask us, we will do our best to serve you.
