Excellent Quality Fire Tube Natural Gas Diesel Oil Heavy Oil 1-10t/h 10-25t/h Industrial Steam Boiler

Henan Yinchen Boiler Group Co.,Ltd
Contact Now
    Buy cheap Excellent Quality Fire Tube Natural Gas Diesel Oil Heavy Oil 1-10t/h 10-25t/h Industrial Steam Boiler from wholesalers

    Buy cheap Excellent Quality Fire Tube Natural Gas Diesel Oil Heavy Oil 1-10t/h 10-25t/h Industrial Steam Boiler from wholesalers
    • Buy cheap Excellent Quality Fire Tube Natural Gas Diesel Oil Heavy Oil 1-10t/h 10-25t/h Industrial Steam Boiler from wholesalers
    • Buy cheap Excellent Quality Fire Tube Natural Gas Diesel Oil Heavy Oil 1-10t/h 10-25t/h Industrial Steam Boiler from wholesalers

    Excellent Quality Fire Tube Natural Gas Diesel Oil Heavy Oil 1-10t/h 10-25t/h Industrial Steam Boiler

    Ask Lasest Price
    Brand Name : Yinchen
    Model Number : WNS
    Certification : ISO SGS CE
    Price : 4000-69800 USD
    Payment Terms : L/C, T/T, MoneyGram
    Supply Ability : 5000 set / year
    Delivery Time : 10-20 working days
    • Product Details
    • Company Profile

    Excellent Quality Fire Tube Natural Gas Diesel Oil Heavy Oil 1-10t/h 10-25t/h Industrial Steam Boiler

    Detail parameter:r:

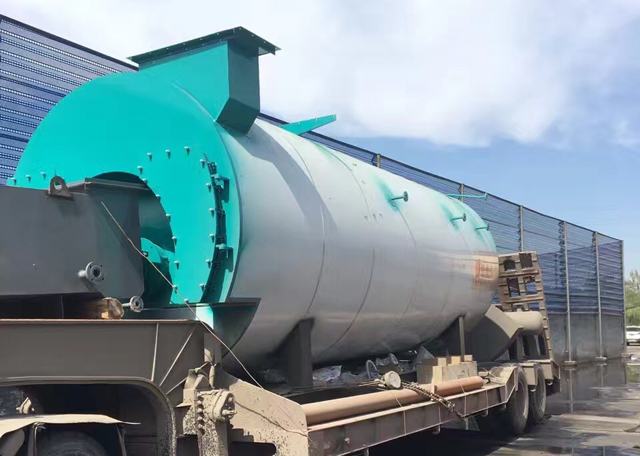

    WNS series oil steam boiler adopts three returns wet back structure, taking gas as fuel and transferring the chemical energy to heat energy, is widely used in garment factory, textile factory, brick making plant, food processing plant, beer processing, rice milling field, chemical plant, pharmaceutical factory, etc.

    Type

    WNS0.5-1.0-Y(Q)

    WNS1-1.0-Y(Q)

    WNS2-1.0-Y(Q)

    WNS3-1.25-Y(Q)

    WNS4-1.25-Y(Q)

    WNS5-1.25-Y(Q)

    WNS6-1.25-Y(Q)

    WNS8-1.25-Y(Q)

    WNS10-1.25-Y(Q)

    WNS10-1.6-Y(Q)

    SZS20-2.5-450 Y(Q)

    Rated Output
    (t/h)

    0.5

    1

    2

    3

    4

    5

    6

    8

    10

    10

    20

    Rated Steam Pressure
    (Mpa)

    1.0

    1.0

    1.25

    1.25

    1.25

    1.25

    1.25

    1.25

    1.25

    1.6

    2.5

    Steam Temperature
    (℃)

    184

    184

    194

    194

    194

    194

    198

    194

    194

    204

    450

    Thermal Efficiency
    (%)

    92.2

    92.4

    92.5

    92.5

    92.8

    92.8

    93.2

    93.5

    93.8

    94.2

    94.5

    Rated Oil/Gas Consumption
    (Kg/h)(Nm³/h)

    30.5
    38

    61
    76

    122
    151

    185
    230

    243
    300

    306
    379

    362
    400

    485
    598

    610
    755

    611
    756

    1221
    1510

    Power Consumption
    (Kw)

    2.96
    (2.96)

    4.4/8.9
    (3.7)

    7/20.2
    (7)

    9.5/22.7
    (10.5)

    13/26.2
    (13.5)

    14.5/28
    (15)

    23/45.4
    (20.5)

    24/37.5
    (24)

    39.5/52
    (39.5)

    39.5/52
    (39.5)

    58/65
    (58)

    Suitable Fuel

    Light/ Heavy oil, Natural gas/ Town gas, Coke oven gas

    Power Supply(AC)

    380V 50Hz

    Maximum Shipping Size
    L×H×W (m)

    3.1×1.9×1.9

    4.35×2.5×2.33

    4.17×2.1×2.96

    4.48×2.38×2.96

    4.9×2.9×3.1

    5.3×2.4×3.27

    6.14×2.4×3.27

    6.01×2.9×3.37

    6.86×2.9×3.27

    6.86×2.9×3.37

    10.8×3.1×3.6

    Type of Burning

    Pressure Atomization/ Pressurized Combustion

    Adjustment Methods

    Automatic

    Advantage:


    1. Large Heating Surface

    2. High Thermal Efficiency

    3. Fully Automatic Control

    4. Clean combustion,Less pollution

    Automatic Protection Device

    1. Monitoring of water level
    2. Setting time
    3. Electric leakage protection
    4. Water shortage protection
    5. Power abnormal protection
    6. Over pressure protection
    7. Intergrated gas manifolds and protection system
    8. Flue gas monitoring device

    Why Choose Us?

    1. We will reply your inquiry in 7*24 hours.
    2. Experienced staffs will answer all your questions in fluent and professional English.
    3. Customized design is available.
    Guarantee: One-year warranty and full-life service for all of our steam boilers;
    A full range of original spare parts are available for all YINCHEN boilers
    Pre-sales Service: Based on customers’ request and budget, our experts make efficient, reliable
    solutions, and we produce strictly following customers’ order. Every customer has the chance to visit
    our workshops before placing the order. And we help to arrange cars, hotels, and the translators for
    every visiting customer.
    After-sales Service: Experienced technicians guidance is available on the phone, and on the internet.
    One or more engineers will be dispatched to the installation site to help install the customers’ boilers.
    We also provide necessary training about boiler operation and daily maintenance to local workers.
