Yinchen Brand Diesel Fired Steam Boiler Used In Package Machine
Industry Corrugated Machine
WNS series gas/oil fired steam boiler is horizontal three pass fire tube wet back full automatic steam
boiler. It normally suitable for 500kg to 20ton/h capacity, use all
kinds of gas and oil fuels,such as natural gas, lpg,lng,cng,city
gas,biogas, diesel oil,heavy oil.
♦ Unique structure design of big combustion chamber, 3-stroke all
wet-back structure, super radiation heat-exchange and low
temperature burning to improve thermal efficiency, reduce NOX
emission and protect the environment.
♦ Adoption of thread smoke tube improves heat transmission and
thermal efficiency.
♦ Multiple-sealing of boiler front and back smoke box prevent smoke
leakage.
♦ Large steam space leads to better steam quality.
♦ Multiple measures of such as water level,steam pressure and
smoke-discharging temperature make the boiler safe and reliable.
♦ Efficient thermal protection materials ensurethe lower boiler
surface temperature.
♦ Boiler energy-saver of GENTLE company save the fuel cost by
5-15%, Upgrading the boiler into condenser ones.
♦ Multiple-point pollutant discharging makes the heating surface of
boiler cleaner.
What is the Details of Boiler?
Type | WNS0.5-1.0-Y(Q) | WNS1-1.0-Y(Q) | WNS2-1.0-Y(Q) | WNS3-1.25-Y(Q) | WNS4-1.25-Y(Q) | WNS5-1.25-Y(Q) | WNS6-1.25-Y(Q) | WNS8-1.25-Y(Q) | WNS10-1.25-Y(Q) | WNS10-1.6-Y(Q) | SZS20-2.5-450 Y(Q) |
Rated Output
(t/h) | 0.5 | 1 | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 10 | 20 |
Rated Steam Pressure
(Mpa) | 1.0 | 1.0 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.6 | 2.5 |
Steam Temperature
(℃) | 184 | 184 | 194 | 194 | 194 | 194 | 198 | 194 | 194 | 204 | 450 |
Thermal Efficiency
(%) | 92.2 | 92.4 | 92.5 | 92.5 | 92.8 | 92.8 | 93.2 | 93.5 | 93.8 | 94.2 | 94.5 |
Rated Oil/Gas Consumption
(Kg/h)(Nm³/h) | 30.5
38 | 61
76 | 122
151 | 185
230 | 243
300 | 306
379 | 362
400 | 485
598 | 610
755 | 611
756 | 1221
1510 |
Power Consumption
(Kw) | 2.96
(2.96) | 4.4/8.9
(3.7) | 7/20.2
(7) | 9.5/22.7
(10.5) | 13/26.2
(13.5) | 14.5/28
(15) | 23/45.4
(20.5) | 24/37.5
(24) | 39.5/52
(39.5) | 39.5/52
(39.5) | 58/65
(58) |
Suitable Fuel | Light/ Heavy oil, Natural gas/ Town gas, Coke oven gas |
Power Supply(AC) | 380V 50Hz |
Type of Burning | Pressure Atomization/ Pressurized Combustion |
Adjustment Methods | Automatic |

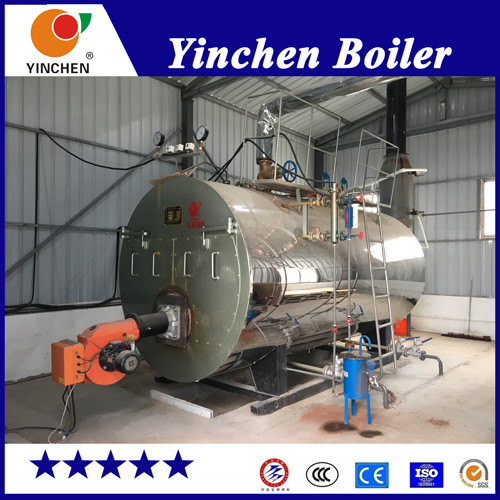

Product Pictures
1. Safety
2. Efficiency
3. Energy Saving
4. Environmental Protection
Why Choose Us?
- We will reply your inquiry in 7*24 hours.
- Experienced staffs will answer all your questions in fluent and
professional English.
- Customized design is available.
Guarantee: One-year warranty and full-life service for all of our steam
boilers;
A full range of original spare parts are available for all YINCHEN
boilers
Pre-sales Service: Based on customers’ request and budget, our experts make
efficient, reliable
solutions, and we produce strictly following customers’ order.
Every customer has the chance to visit
our workshops before placing the order. And we help to arrange
cars, hotels, and the translators for
every visiting customer.
After-sales Service: Experienced technicians guidance is available on the phone, and on
the internet.
One or more engineers will be dispatched to the installation site
to help install the customers’ boilers.
We also provide necessary training about boiler operation and daily
maintenance to local workers.
PACKING AND SHIPPING
| Packaging | Standard Export Package:Regular packing or nude packing. |
| Transportation | By land or by sea, depended on the exporting area. |
