Yinchen Brand Automatic Horizontal Gas Fired Laundry Diesel Steam
Boiler Price
WNS series gas or oil fired steam boiler is the fire tube boiler with 3 pass.
The boiler adopts the bias furnace and wet back structure. The high
temperature smoke flows through the first, second and third smoke
pipes in turn. And then the smoke can be discharged into the
atmosphere through the chimney. The boiler is provided with the
movable front and back smoke boxes covers. So that the boiler is
easy to overhaul. Also our boiler is equipped with the burner in
great performance. The boiler is also with the functions of
automatic combustion adjustment, automatic water feeding regulator,
automatic program start or stop, automatic operation and other
advanced technology. Besides, our boiler has the functions of high
and low level alarm and limit low water level protection, over high
pressure protection and automatic flameout protection function. The
utility model boiler has the advantages of compact structure,
safety, simple operation, quick installation, little pollution, low
noise and high efficiency.
1. The flue gas process adopts the 3 pass smoke pipes layout. The
boiler is with full butt welding wet back structure and corrugated
furnace. The screw thread smoke pipe is arranged in convection
area. There is a long flue gas flow process in the boiler. So that
the boiler is with a great heat transfer effect;
2, compact structure, simple and easy installation, less
infrastructure investment
3, according to user requirements, the boiler can be configured
with different fuel burner to adapt to different fuels: natural
gas, liquefied petroleum gas, light oil and so on;
4. Meters and valves are also matched with the boiler. We selected
top qualified accessories for the boiler and we can not only ensure
our boiler quality but also we can provide all the accessories a 2
years warranty.
What is the Details of Boiler?
Type | WNS0.5-1.0-Y(Q) | WNS1-1.0-Y(Q) | WNS2-1.0-Y(Q) | WNS3-1.25-Y(Q) | WNS4-1.25-Y(Q) | WNS5-1.25-Y(Q) | WNS6-1.25-Y(Q) | WNS8-1.25-Y(Q) | WNS10-1.25-Y(Q) | WNS10-1.6-Y(Q) | SZS20-2.5-450 Y(Q) |
Rated Output
(t/h) | 0.5 | 1 | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 10 | 20 |
Rated Steam Pressure
(Mpa) | 1.0 | 1.0 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.6 | 2.5 |
Steam Temperature
(℃) | 184 | 184 | 194 | 194 | 194 | 194 | 198 | 194 | 194 | 204 | 450 |
Thermal Efficiency
(%) | 92.2 | 92.4 | 92.5 | 92.5 | 92.8 | 92.8 | 93.2 | 93.5 | 93.8 | 94.2 | 94.5 |
Rated Oil/Gas Consumption
(Kg/h)(Nm³/h) | 30.5
38 | 61
76 | 122
151 | 185
230 | 243
300 | 306
379 | 362
400 | 485
598 | 610
755 | 611
756 | 1221
1510 |
Power Consumption
(Kw) | 2.96
(2.96) | 4.4/8.9
(3.7) | 7/20.2
(7) | 9.5/22.7
(10.5) | 13/26.2
(13.5) | 14.5/28
(15) | 23/45.4
(20.5) | 24/37.5
(24) | 39.5/52
(39.5) | 39.5/52
(39.5) | 58/65
(58) |
Suitable Fuel | Light/ Heavy oil, Natural gas/ Town gas, Coke oven gas |
Power Supply(AC) | 380V 50Hz |
Type of Burning | Pressure Atomization/ Pressurized Combustion |
Adjustment Methods | Automatic |

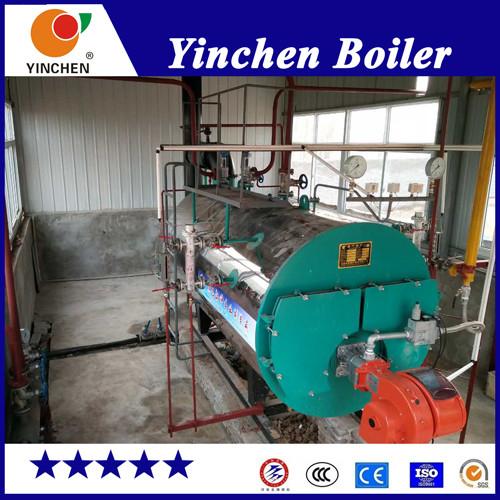

Product Pictures
1. Safety
2. Efficiency
3. Energy Saving
4. Environmental Protection
