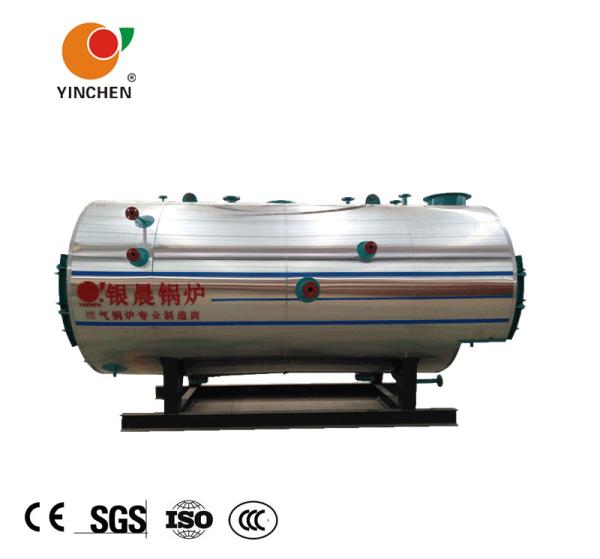

Wet Back Inner Combustion Quick Steam 1T-10T/H Horizontal Fuel Oil Fired Steam Boiler

WNS series horizontal oil-fired and gas-fired steam boilers adopt internal combustion three-way full wet-back type, which reduces operation cost, has stable output, simple automatic control operation and convenient maintenance.

What is the Details of Boiler?

Type	WNS0.5-1.0-Y(Q)	WNS1-1.0-Y(Q)	WNS2-1.0-Y(Q)			WNS3-1.25-Y(Q)	WNS4-1.25-Y(Q)	WNS5-1.25-Y(Q)	WNS6-1.25-Y(Q)	WNS8-1.25-Y(Q)	WNS10-1.25-Y(Q)	WNS10-1.6-Y(Q)	SZS20-2.5-450 Y(Q)
Rated Output (t/h)	0.5	1	2			3	4	5	6	8	10	10	20
Rated Steam Pressure (Mpa)	1.0	1.0	1.25			1.25	1.25	1.25	1.25	1.25	1.25	1.6	2.5
Steam Temperature (℃)	184	184	194			194	194	194	198	194	194	204	450
Thermal Efficiency (%)	92.2	92.4	92.5			92.5	92.8	92.8	93.2	93.5	93.8	94.2	94.5
Rated Oil/Gas Consumption (Kg/h)(Nm³/h)	30.5 38	61 76	122 151			185 230	243 300	306 379	362 400	485 598	610 755	611 756	1221 1510
Power Consumption (Kw)	2.96 (2.96)	4.4/8.9 (3.7)	7/20.2 (7)			9.5/22.7 (10.5)	13/26.2 (13.5)	14.5/28 (15)	23/45.4 (20.5)	24/37.5 (24)	39.5/52 (39.5)	39.5/52 (39.5)	58/65 (58)
Suitable Fuel	Light/ Heavy oil, Natural gas/ Town gas, Coke oven gas
Power Supply(AC)	380V 50Hz
Maximum Shipping Size L×H×W (m)	3.1× 1.9×1.9	4.35× 2.5×2.33		4.17× 2.1×2.96	4.48× 2.38×2.96		4.9× 2.9×3.1	5.3× 2.4×3.27	6.14× 2.4×3.27	6.01× 2.9×3.37	6.86× 2.9×3.27	6.86× 2.9×3.37	10.8× 3.1×3.6
Type of Burning	Pressure Atomization/ Pressurized Combustion
Adjustment Methods	Automatic

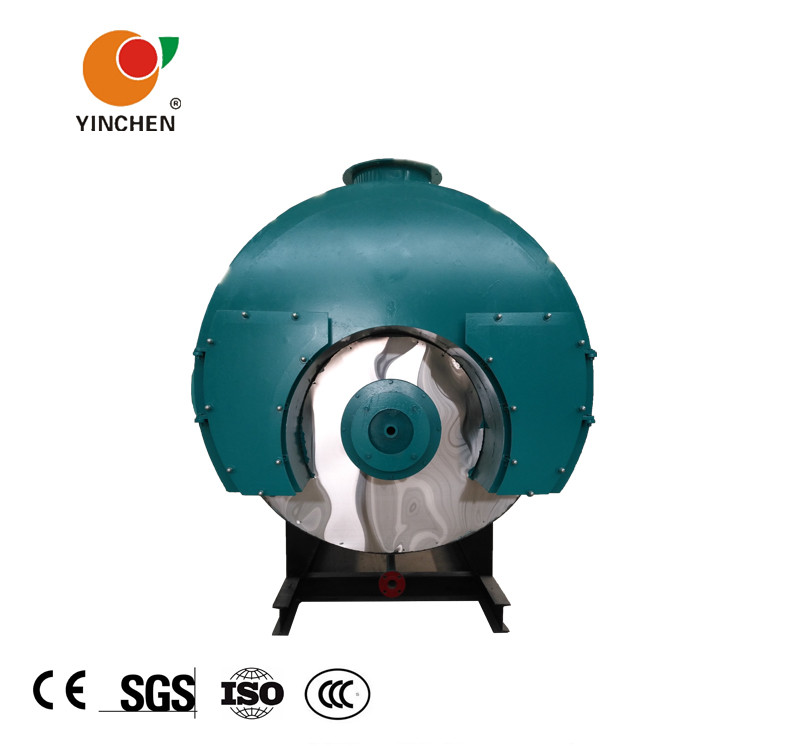

Product Pictures

1. Safety

2. Efficiency

3. Energy Saving

4. Environmental Protection

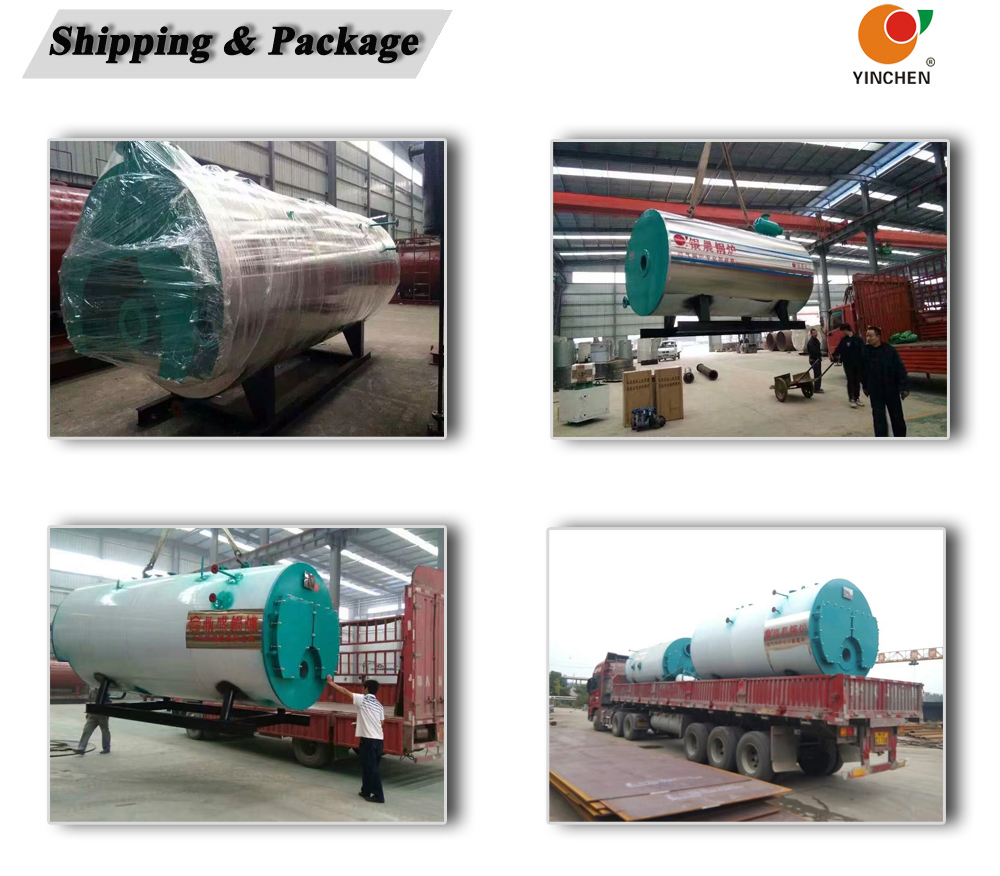

PACKING AND SHIPPING

1 . Nude packaging for boiler mian part and wood box packaging for boiler accessories.

2 . Normally we use container or flat rack container to load it.

3 . All goods will be reforced after packing into containers.

4 . We have stable shipping company to cooperate. They will confirm the safty of the goods.

5 . Shipping way is different according to customer's country. Mostly by sea. Some country by train.

Packaging	Standard Export Package:Regular packing or nude packing.
Transportation	By land or by sea, depended on the exporting area.

Why Choose Us?

1. We will reply your inquiry in 7*24 hours.
2. Experienced staffs will answer all your questions in fluent and professional English.
3. Customized design is available.

Guarantee: One-year warranty and full-life service for all of our steam boilers;

A full range of original spare parts are available for all YINCHEN boilers

Pre-sales Service: Based on customers’ request and budget, our experts make efficient, reliable

solutions, and we produce strictly following customers’ order. Every customer has the chance to visit

our workshops before placing the order. And we help to arrange cars, hotels, and the translators for

every visiting customer.

After-sales Service: Experienced technicians guidance is available on the phone, and on the internet.

One or more engineers will be dispatched to the installation site to help install the customers’ boilers.

We also provide necessary training about boiler operation and daily maintenance to local workers.
