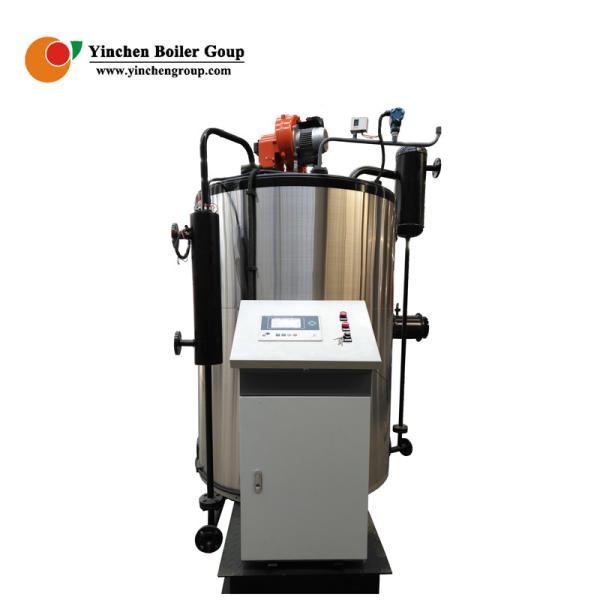

Excellent Performance Natural Circulation Burner Located Top
Vertical 3 ton Oil Steam Boiler For Rice Mill
1. It uses the vertical layout; the boiler structure is compact and
covers small area,which has simple requirements for the boiler
room.
2. The boiler can quickly boost and its start-up time is short. In
the normal temperature condition, 3-5 minutes can generate steam.
3. The installation is very convenient because the boiler proper
can be assembled in the factory and we have complete supporting
facilities.
4. It is the tube plate structure, and never has the boiler
explosion accident, so the safety performance is wonderful.
5. With comprehensive temperature display function, you can more
easily grasp the operation condition of the boiler and the system.
Parameters of Boiler
Boiler Type | LSS0.5 | LSS1.0 | LSS2.0 | LSS4.0 |
Rated Evaporation(t/h) | 0.5 | 1.0 | 2.0 | 4.0 |
Rated Steam Pressure(Mpa) | 1.0, 1.6 |
Steam Temperature(℃) | 184, 204 |
Feed Water Temperature(℃) | 20 |
Type of Burning | Two-section Type |
Thermal Efficiency(%) | >96.5 |
Suitable Fuel | Diesel oil, Heavy oil, Natural gas |
Fuel Consumption
| Diesel oil(kg/h) | 29 | 58 | 119 | 238 |
Heavy oil(kg/h) | 31 | 62 | 125 | 249 |
Natural gas(Nm³/h) | 36 | 75 | 148 | 296 |
Main Steam Port | DN40 | DN50 | DN65 | DN125 |
Feed Water Inlet | DN20 | DN25 | DN32 | DN40 |
Total Electrical Power Rating(Kw) | 3 | 8 | 9 | 15 |
Chimney Diameter(mm) | Φ200 | Φ280 | Φ430 | Φ580 |
Size | L(mm) | 2100 | 2300 | 2500 | 3000 |
W(mm) | 1600 | 2000 | 2300 | 3200 |
H(mm) | 2100 | 3000 | 3100 | 4800 |
The application of Boiler
LSS vertical automatic feeding gas or oil fired boiler is ideal
heat-producing and drying equipment for textile industry,
pharmaceutical industry, rice mill industry, garment factory,
chemical industries, power station, food industries, hotel,
laundry, laboratory, building heating, school, bath center,
administrative institution, and so on.
Henan Yinchen Boiler Group Co.,LTD. was founded at the beginning of
2001, which has a registered captical of 51.66 million. Its
headquarters is in the industrial district in Fucaolou town,
Taikang county of Henan province. The production factory is
adjacent to Yong Deng high-speed,and the 311 national road is also
through this district,so it has very convenient transportation
conditions.Besides, it is one of the key leading enterprises which
firstly get the National Boiler Manufacturing license. With the
manufacturing license qualification of "B" class boiler and
"D2"class pressure vessel, it is director of China Industrial
Boiler Association, member unit of China Welding Association and
the enterprise of emphasizing the contract and credit in Henan
province. The products have already passed ISO9001-2000
international quality system certification.
Our service
Pre-sale service: Provide relative technical data,foundation drawing,layout
drawing,boiler room drawing and general drawing.
After-sale service:Help customer installation and commissioning. Free maintenance and
repair for one year.
FAQ
1. What can you get from us before quotation?
After confirming all the details about your requirement, we will
provide you with several sets of related project pictures we have
done before. Once you are satisfied with our strength and our
products, lets continue.
2. Below are the details need your confirmation before quotation.
2-1 What type boiler you need, steam boiler, thermal oil boiler or
hot water boiler?
2-2 What is the fuel type for you boiler, biomass(coal, shell,
pellet etc.), gas or oil?
2-3 What is the requirement for oil/steam temperature and pressure?
2-4What is the evaporation capacity of boiler required?
3. How long can we get the reply with detailed information for our
project?
For single boiler, usually you can get the detailed offer within 1
day after details confirmed; For whole set project; the time takes
longer and usually 2-3 days for tentative plan and process flow
drawing.
4. What is your advantages for the whole project?
We have been in the boiler equipment fields for many years and
obtain a good reputation with the up/down partner. So we have much
richer resource in different fields like the burn system PIC
control instrument, raw material quality selecting shipping
installation etc. We are comprehensive company with experiences for
different fields.
5. What is warranty for your equipment and whole set of project?
For boiler body, we provide you with 12 months quality warranty.for
all the parts of our equipment by repairing or replacing, damage
caused by human excepted. For whole project, our engineer will stay
in your site for equipment installation, debugging and training
till you get standard products from the equipment. If necessary, we
will also help you find an engineer to work for you for 1 or 2 year
for your plant management.
