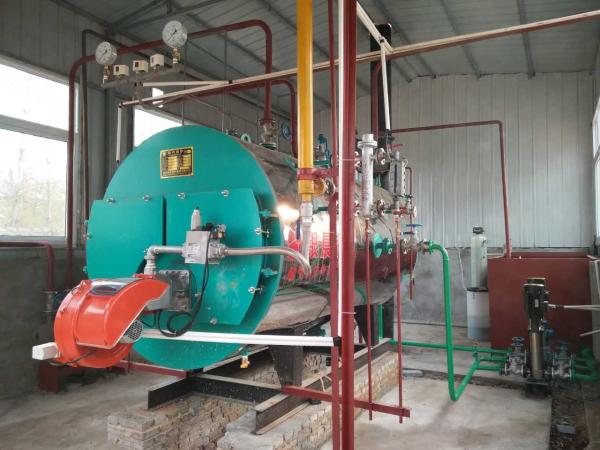

Best Factory Price Automatic Wns Fire Tube Diesel Oil Natural Gas
Fired Steam Boiler For Brick-making Factory
Product Introduction:
1. The WNS oil/gas fired steam boiler is a horizontal internal
combustion and three quick return boiler with fire tubes.
2. It has fully wet back structure, and the high temperature flue gas will be injected into the
atmosphere after convection heat transfer through the reversal
chamber into the first flue tube bundle and the front smoke box
with turning 180℃ into the second flue tube bundle.
3. The boiler has excellent technical performance of industrial
combustor and low water level alarm and low water levels, high steam pressure.
4. Besides, It has the features of compact structure, safe and
reliable design, fast installation, less pollution, low noise and
high efficiency.

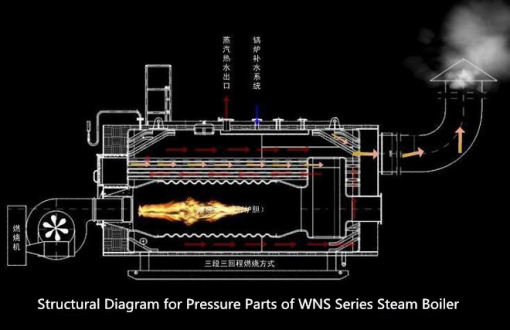

flue gas flow:
The first return:boiler fuel micro-positive buring in the furnace.
The second return:the flame and high temperature smoke through
reversal chamber into short smoke pipe.
The third return:smoke through front smoke box into long smoke
pipe.after the convection heat transfer discharge into atmosphere.
Technicals:
Boiler Model | Rated Capacity | Rated Pressure | Steam Temperature |
Fuel consumption | Thermal efficiency | Weight |
| t/h | Mpa | ℃ | Diesel oil (Kg/h) | Natural gas (Nm³/h) | % | T |
| WNS0.5-1.0-Y(Q) | 0.5 | 1 | 184 | 20-35 | 18-35 | >90 | 3 |
| WNS1-1.0-Y(Q) | 1 | 1 | 184 | 45-100 | 70-100 | >90.2 | 4.3 |
| WNS2-1.25-Y(Q) | 2 | 1.25 | 194 | 120-140 | 140-150 | >91.5 | 7.2 |
| WNS3-1.25-Y(Q) | 3 | 1.25 | 194 | 180-210 | 185-230 | >91.6 | 8 |
| WNS4-1.25-Y(Q) | 4 | 1.25 | 194 | 230-280 | 240-290 | >91.7 | 9.6 |
| WNS6-1.25-Y(Q) | 6 | 1.25 | 194 | 360-380 | 370-400 | >92 | 16.5 |
| WNS8-1.25-Y(Q) | 8 | 1.25 | 194 | 470-510 | 480-530 | >91.3 | 24.8 |
| WNS10-1.25-Y(Q) | 10 | 1.25 | 194 | 600-630 | 650-700 | >92.4 | 26.8 |
| WNS15-1.25-Y(Q) | 15 | 1.25 | 194 | 900-940 | 930-1000 | >92.5 | 38 |
| WNS20-1.25-Y(Q) | 20 | 1.25 | 194 | 1200-1300 | 1350-1500 | >93 | 55 |
Prouduct Application:
The boiler can used to many industries,such as Beverage
industry,Chemical industry,Food industry,Greenhouse heating,paper
industry,Pharmaceutical industry,Rubber industry,Textile
industry,Hotel,Rice mill industry,Garment industry,Asphalt industry
etc.
FAQ:
How to choose a boiler type?
Identify the type of boiler you want(steam boiler or hot water
boiler).
The boiler capacity,pressure,and fuel(oil,gas,biomass,coal),or you
can consult us.
How about the installation?
Guide installation online or we can provide staff installation by
our staffs, but you have to afford the extra cost if If we send
professional staff overseas to install it.
How about your delivery time?
Generally, it will take 10 to 15 days after receiving your advance
payment. The specific delivery time depends on the items and the
quantity of your order.
What about after-sale service?
We will supply professional after-sale service team as soon as we
receiving your problem feedback, we will dispatch our engineers to
your country and solve your problems right now.
You have other questions and Suggestions, please feel free to ask
us, we will do our best to serve you.
