China Supplier Diesel Oil Steam Boiler Machine Wholesaler Boiler
Factory
Product introduction:

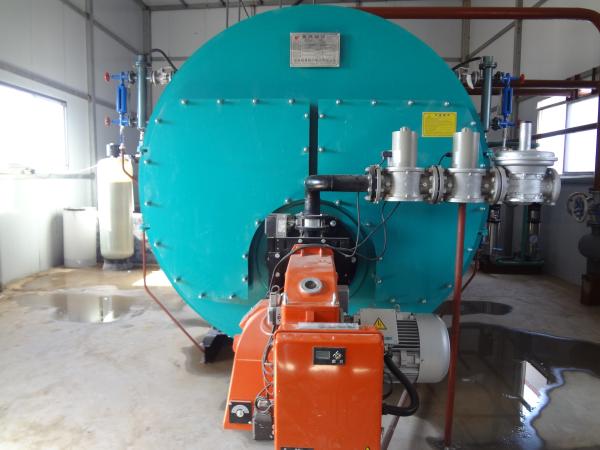

WNS series gas/oil fired steam boiler is horizontal three pass fire tube wet back full automatic steam
boiler. It normally suitable for 500kg to 20ton/h capacity, use all
kinds of gas and oil fuels,such as natural gas, LPG,LNG,CNG,city
gas,town gas,biogas, diesel oil,heavy oil etc.
1. Model:WNS
2. Capacity:500kg/h-20ton/h
3. Design pressure:1.0Mpa(10bar), 1.25Mpa(13bar),
1.6Mpa(16bar),2.5Mpa(25bar)
4. Stem temperature:below 224 degree
5. Design fuel:natural gas, lpg,lng,cng,city gas,biogas, diesel
oil,heavy oil
6. Structure: three pass fire tube wet back
7. Application: boiler for textile mill, milk
pasteurization,corrugated machine, sugar factory,printing dyeing
mill,medicine industry, food & beverage industry, chemical
industry, garment industry, food processing industry, and wood
processing industry, etc.
Product technicals:
Boiler Model | Rated Capacity | Rated Pressure | Steam Temperature |
Fuel consumption | Thermal efficiency | Weight |
| t/h | Mpa | ℃ | Diesel oil (Kg/h) | Natural gas (Nm³/h) | % | T |
| WNS0.5-1.0-Y(Q) | 0.5 | 1 | 184 | 20-35 | 18-35 | >90 | 3 |
| WNS1-1.0-Y(Q) | 1 | 1 | 184 | 45-100 | 70-100 | >90.2 | 4.3 |
| WNS2-1.25-Y(Q) | 2 | 1.25 | 194 | 120-140 | 140-150 | >91.5 | 7.2 |
| WNS3-1.25-Y(Q) | 3 | 1.25 | 194 | 180-210 | 185-230 | >91.6 | 8 |
| WNS4-1.25-Y(Q) | 4 | 1.25 | 194 | 230-280 | 240-290 | >91.7 | 9.6 |
| WNS6-1.25-Y(Q) | 6 | 1.25 | 194 | 360-380 | 370-400 | >92 | 16.5 |
| WNS8-1.25-Y(Q) | 8 | 1.25 | 194 | 470-510 | 480-530 | >91.3 | 24.8 |
| WNS10-1.25-Y(Q) | 10 | 1.25 | 194 | 600-630 | 650-700 | >92.4 | 26.8 |
| WNS15-1.25-Y(Q) | 15 | 1.25 | 194 | 900-940 | 930-1000 | >92.5 | 38 |
| WNS20-1.25-Y(Q) | 20 | 1.25 | 194 | 1200-1300 | 1350-1500 | >93 | 55 |
Product advantage:
1. Lower dust emission & SO2 emission & NOx emission, dust emission
concentration < 30mg/m³,SO2 & NOx emission concentration <
30mg/m³.
2. We have strict quality control system. From the material,
welding, to finished boiler shipment, from project , establishment,
drawing design, to final audit.
3. Each boiler system part is from first class brand all over the
world or China, ensure the high quality.
4. We can offer the best after sales services and send our engineer
to your factory to give you the complete installation and
commission guidance.
Our service:
- We will reply your inquiry in 7*24 hours.
- Experienced staffs will answer all your questions in fluent and
professional English.
- Customized design is available.
Guarantee: One-year warranty and full-life service for all of our steam
boilers;
A full range of original spare parts are available for all YINCHEN
boilers
Pre-sales Service: Based on customers’ request and budget, our experts make
efficient, reliable
solutions, and we produce strictly following customers’ order.
Every customer has the chance to visit
our workshops before placing the order. And we help to arrange
cars, hotels, and the translators for
every visiting customer.
After-sales Service: Experienced technicians guidance is available on the phone, and on
the internet.
One or more engineers will be dispatched to the installation site
to help install the customers’ boilers.
We also provide necessary training about boiler operation and daily
maintenance to local workers.
Packing and transportation
| Packaging | 1.When transport, the boiler body and large auxiliary equipments
(platform, chimney, economizer, etc ) are nude packed or tied up.
2.the smaller auxiliary equipments are encased by using the strong
intensity wooden or plywood box. |
| Transportation | 3.The products could be transported by ship and train, customers
could designate the ports.
4.If necessary, the small auxiliaries could be transported by
airplane. |
FAQ
Q-What is your payment term ?
A-Usually it would be 30% deposit payment, 70% balance before
delivery. T/T, L/C and other way.
Q-Are your company is a trading company or a factory?
A-We are a 20 years old industrial boiler factory, specializing in
OIL and GAS and Coal fired steam boiler.
Q-What is the warranty for boilers?
A-Our company promises all the accessories can be changed for new
ones because of quality problems within 3 years, and the boiler
host has Lifetime Warranty.
Q-Can we get installation and commissioning service ?
A-Yes, our engineers are available for your need, but the relative
cost needs to be paid.
Q-What about the delivery ?
A-Usually it will take about 35-45 days for pressured boilers, and
25-30 days for non-pressured boilers. Double confirmation shall be
necessary before ordering.
