SZL Best Sale Industrial Horizontal Output Coal Fired Steam Boiler
Prices
introduce Of Industrial Horizontal Output Coal Fired Steam Boiler

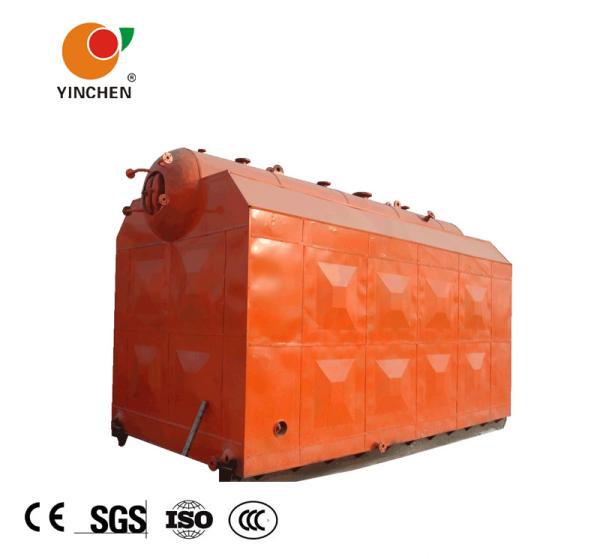

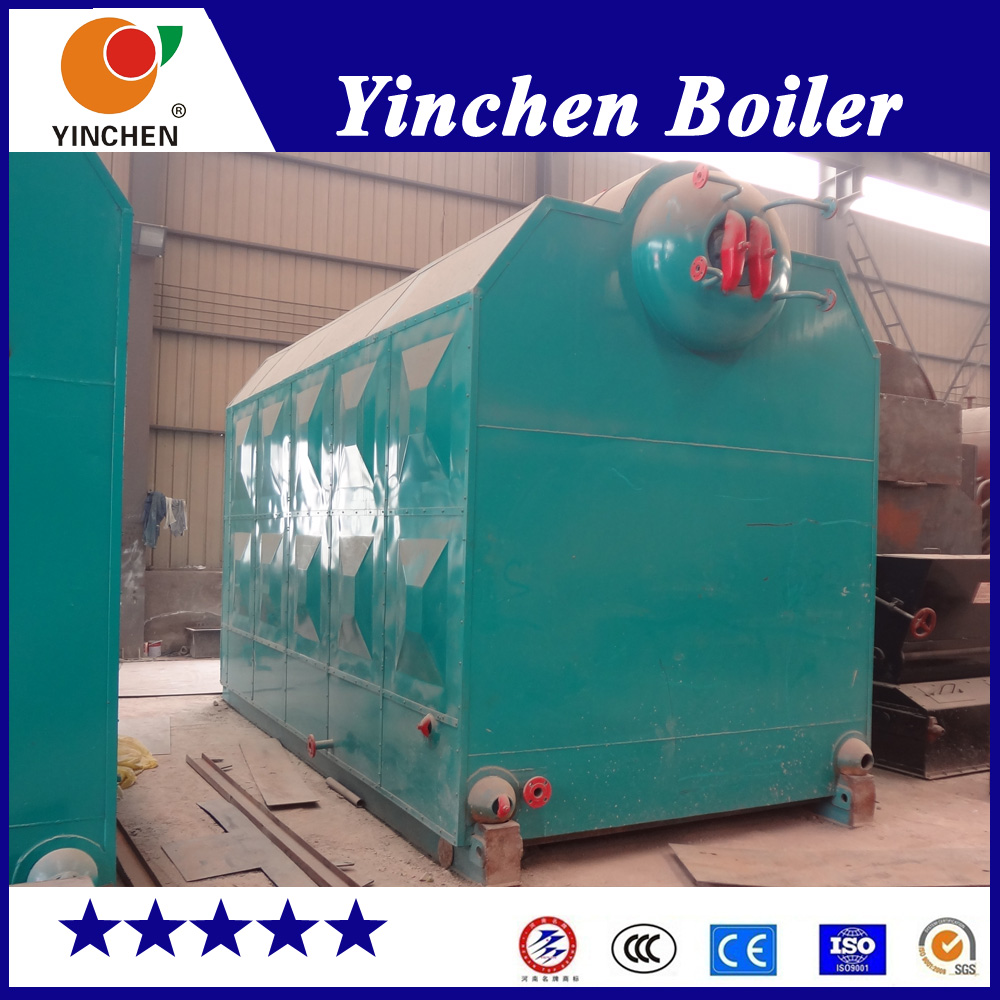

SZL type Industrial Horizontal Output Coal Fired Steam Boiler
adopts double-tube arrangement with longitudinal A type
arrangement. The combustion structure adopts chain grate. It is
suitable for coal or blended coal fuels. The water wall on both
sides of the furnace body adopts membrane water wall structure. The
front and rear water wall tubes extend downward to the upper grate
to form front and rear arches to increase the sealing performance
of the boiler and increase the furnace volume and heating surface.
At the rear of the combustion chamber, there are reburning
chambers, convection tube bundles and coal heat savers. The flue
gas flows through the furnace chamber, combustion chamber,
convection tube bundle and coal throttle to the back-end pipeline
system. The flue gas is then discharged into the atmosphere through
dust collectors, induced draft fans and chimneys.
Parameter of SZL Industrial Horizontal Output Coal Fired Steam Boiler
| Type | SZL4-1.25- AII | SZL6-1.25- AII | SZL10-1.25- AII | SZL15-1.25- AII | SZL20-1.25- AII |
| Rated Evaporation(t/h) | 4 | 6 | 10 | 15 | 20 |
| Rated Working Pressure(Mpa) | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 |
| Rated Steam Temperature(℃) | 194 | 194 | 194 | 194 | 194 |
| Feed Water Temperature(℃) | 20 | 60 | 60 | 105 | 105 |
Heating Area
(m2) | Boiler Body | 91.5 | 142 | 234.5 | 296 | 395 |
| Economizer | 54 | 130 | 175 | 350 | 300 |
| Grate Area (m2) | 4.85 | 7.8 | 12 | 17.4 | 21.5 |
| Boiler Water Capacity(m³) | 5.6 | 7.4 | 13 | 15.5 | 22 |
| Boiler Thermal Efficiency (%) | >78 | >80 | >80 | >80 | >80 |
| Suitable Fuel | Bituminous coal |
| Fuel Consumption(Kg/h) | 640 | 945 | 1545 | 2185 | 3085 |
| Maximum Shipping Size(m) | 5.3×2.7×3.5 | 7.1×2.7×3.5 | 8×3.3×3.5 | 10×3.25×3.5 | 11.2×3.3×3.5 |
| Post-installing Size(m) | 7.1×2.7×4.7 | 8.1×3.7×6.2 | 9.4×4.1×6.2 | 11×4.8×6.8 | 12.5×4.8×7.8 |
Henan Yinchen Boiler Group Co.,LTD. was founded at the beginning of
2001, which has a registered captical of 51.66 million. Its
headquarters is in the industrial district in Fucaolou town,
Taikang county of Henan province. The production factory is
adjacent to Yong Deng high-speed,and the 311 national road is also
through this district,so it has very convenient transportation
conditions.Besides, it is one of the key leading enterprises which
firstly get the National Boiler Manufacturing license. With the
manufacturing license qualification of "B" class boiler and
"D2"class pressure vessel, it is director of China Industrial
Boiler Association, member unit of China Welding Association and
the enterprise of emphasizing the contract and credit in Henan
province. The products have already passed ISO9001-2000
international quality system certification.
FAQ
Q1. What is your patment term?
A1: Usually it would be 30% deposit payment, 70% balance before
delivery. We accept T/T, L/C and other payment way.
Q2. Are your company is a trading company or a factory?
A2: We are a 20 years old industrial boiler factory, specializing in OIL and GAS and Coal fired steam boiler. Now we are one of leading industrial boiler manufacturers in
China.
Q3: What is the warranty for boilers?
A3: Our company promises all the accessories can be changed for new
ones because of quality problems within 3 years,and the boiler host
has Lifetime Warranty.
Q4: Can we get installation and commissioning service?
A4: Yes, our engineers are available for your need, but the relative
cost needs to be paid.
Q5: What about the delivery?
A5: Usually it will take about 35-45 days for pressured boilers, and
25-30 days for non-pressured boilers. Double confirmation shall be
necessary before ordering.
Q6: Where is your company or your factory?
A6: Our factory is located in Taikang County Industry Cluster, Henan
Province, China.
Q7: What’s your MOQ?
A7: Only 1 set, if you have more than that, you will get a more
favorable price.
Q8: Can we visit your factory?
A8: Yes, welcome for your coming at any time. If you need, we can pick
you up when you get to our province.
Attention
Before the Quotation Please Confirm the following parameters first,
then we can recommend right boiler model for you with good price.
- Steam boiler or hot water boiler ?
- Steam capacity and work pressure ?
- Boiler fuel is coal/biomass or oil/gas ?
- Could you tell us the boiler is used in which working process ?
