Automatic Control 300kg Diesel Oil Steam Boiler For Food Industry
Company introduction
Henan Yinchen Boiler Group Co.,Ltd was founded at the beginning of
1976, which has a registered capital of 51.66 million. Its
headquarters is in the industrial district in Fucaolou town,
Taikang county of Henan province. The production factory is
adjacent to Yong Deng high-speed, and the 311 national road is also
through this district, so it has very convenient transportation
conditions.
Besides, it is one of the key leading enterprises which firstly get
the National Boiler Manufacturing License. With the manufacturing
license qualification of "B" class boiler and "D2"class pressure
vessel, it is director of China Industrial Boiler Association,
member unit of China Welding Association and the enterprise of
emphasizing the contract and credit in Henan province. Our company
is the Ministry of Machinery sentinel industrial boilers export
enterprises, which have already exported more than 60 countries and
regions. The products have already passed ISO9001-2000international
quality system certification and CE certificate.
Product introduction

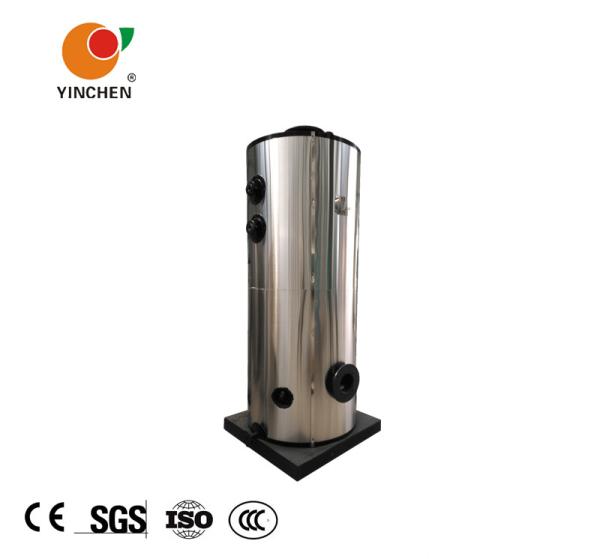

LHS fire tube vertical boiler is packaged internal combustion bent fire-tube boiler.The gas goes
into burner from external and will be lighted through automatic
fuel adjustment and ignition.The high temperature flames wash water
tubes from top of boiler and smoke turns around at the bottom of
boiler, goes up and out through smoke flue and chimney.
The boiler is equiped with international famous burner of high
performance, fulfill automatic burning ratio and water supplying
adjustment, automatic temperature, pressure and water level
controll and high or low pressure, high temperature and low water
level alarm.
Name: gas(oil) steam boiler
Rated capacity: 100kg/h to 500kg/h
Rated steam pressure: 0.4Mpa/0.7Mpa
Rated steam temperature : 151°C/170 °C
Fuel: Light oil, Heavy oil, Natural gas, Liquid gas, City gas etc.
Model: LHS specialized gas(oil) boiler
Parameters of Boiler
| Boiler Type | LHS0.1-0.4-Y.Q | LHS0.15-0.4-Y/Q | LHS0.2-0.4-Y/Q | LHS0.3-0.4-Y/Q | LHS0.5-0.4-Y/Q |
| Rated Evaporation(t/h) | 0.1 | 0.15 | 0.2 | 0.3 | 0.5 |
| Rated Steam Pressure(Mpa) | 0.4,0.7 | |
| Steam Temperature(℃) | 151, 171 | |
| Feed Water Temperature(℃) | 20 | |
| Type of Burning | Two-section Type | |
| Thermal Efficiency(%) | >89.5 | |
| Suitable Fuel | Diesel oil, Heavy oil, Natural gas etc. | |
| Fuel Consumption | Diesel oil(kg/h) | 6.6 | 9.75 | 14 | 18 | 34 |
| Natural gas(Nm³/h) | 9.8 | 14 | 19 | 24 | 42 |
| Main Steam Port | DN40 | DN50 | DN65 | DN125 | DN125 |
| Feed Water Inlet | DN20 | DN25 | DN32 | DN40 | DN40 |
| Total Electrical Power Rating(Kw) | 1.1 | 1.1 | 2.66 | 2.66 | 2.96 |
| Size | L(mm) | 800 | 900 | 900 | 1000 | 1100 |
| W(mm) | 800 | 900 | 900 | 1000 | 1100 |
| H(mm) | 1940 | 2530 | 2730 | 2850 | 2950 |
LHS vertical automatic feeding gas or oil fired boiler is ideal
heat-producing and drying equipment for textile industry,
pharmaceutical industry, rice mill industry, garment factory,
chemical industries, power station, food industries, hotel,
laundry, laboratory, building heating, school, bath center,
administrative institution, and so on.
Our service
Pre-sale service: Provide relative technical data,foundation drawing,layout
drawing,boiler room drawing and general drawing.
After-sale service:Help customer installation and commissioning. Free maintenance and
repair for one year.
