Price 300Kg 400Kg 500Kg 0.5Ton 700Kg Gas LPG Diesel Oil Fired
Vertical Small Steam Boiler
| Apply Fuel: Gas or Oil fired. |
| Payment Terms: 30% T/T in advance ,70% before factory delivery. |
| Lead Time: About 10-15 days after received the down payment. |
Product introduction

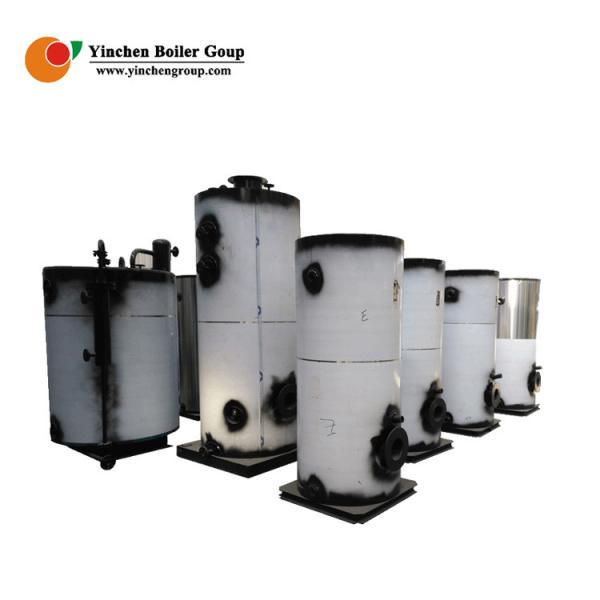

LHS fire tube vertical boiler is packaged internal combustion bent fire-tube boiler.The gas goes
into burner from external and will be lighted through automatic
fuel adjustment and ignition.The high temperature flames wash water
tubes from top of boiler and smoke turns around at the bottom of
boiler, goes up and out through smoke flue and chimney.
The boiler is equiped with international famous burner of high
performance, fulfill automatic burning ratio and water supplying
adjustment, automatic temperature, pressure and water level
controll and high or low pressure, high temperature and low water
level alarm.
Name: gas(oil) steam boiler
Rated capacity: 0.1 to 1 ton/hour
Rated steam pressure: 0.4Mpa/0.7Mpa
Rated steam temperature : 151°C/170 °C
Fuel: Light oil, Heavy oil, Natural gas, Liquid gas, City gas etc.
Model: LHS specialized gas(oil) boiler
Parameters of Boiler
| Boiler Type | LHS0.1-0.4-Y.Q | LHS0.15-0.4-Y/Q | LHS0.2-0.4-Y/Q | LHS0.3-0.4-Y/Q | LHS0.5-0.4-Y/Q |
| Rated Evaporation(t/h) | 0.1 | 0.15 | 0.2 | 0.3 | 0.5 |
| Rated Steam Pressure(Mpa) | 0.4,0.7 | |
| Steam Temperature(℃) | 151, 171 | |
| Feed Water Temperature(℃) | 20 | |
| Type of Burning | Two-section Type | |
| Thermal Efficiency(%) | >89.5 | |
| Suitable Fuel | Diesel oil, Heavy oil, Natural gas etc. | |
| Fuel Consumption | Diesel oil(kg/h) | 6.6 | 9.75 | 14 | 18 | 34 |
| Natural gas(Nm³/h) | 9.8 | 14 | 19 | 24 | 42 |
| Main Steam Port | DN40 | DN50 | DN65 | DN125 | DN125 |
| Feed Water Inlet | DN20 | DN25 | DN32 | DN40 | DN40 |
| Total Electrical Power Rating(Kw) | 1.1 | 1.1 | 2.66 | 2.66 | 2.96 |
| Size | L(mm) | 800 | 900 | 900 | 1000 | 1100 |
| W(mm) | 800 | 900 | 900 | 1000 | 1100 |
| H(mm) | 1940 | 2530 | 2730 | 2850 | 2950 |
LHS vertical automatic feeding gas or oil fired boiler is ideal
heat-producing and drying equipment for textile industry,
pharmaceutical industry, rice mill industry, garment factory,
chemical industries, power station, food industries, hotel,
laundry, laboratory, building heating, school, bath center,
administrative institution, and so on.
Our service
Consultation service: Experienced technicians guidance is available on the phone, and
on the internet.
Installation service:One or more engineers will be dispatched to the installation site
to help install the customers' boilers.
Training service: We also provide necessary training about boiler operation and
daily maintenance to local workers.
Warm service: Based on customers' request and budget, our experts make
efficient, reliable solutions, and we produce strictly following
customers' order. Every customer has the chance to visit our
workshops before placing the order.
Boiler FAQ
Q1. What is your patment term?
A1: Usually it would be 30% deposit payment, 70% balance before
delivery. We accept T/T, L/C and other payment way.
Q2. Are your company is a trading company or a factory?
A2: We are a 20 years old industrial boiler factory, specializing in OIL and GAS and Coal fired steam boiler. Now we are one of leading industrial boiler manufacturers in
China.
Q3: What is the warranty for boilers?
A3: Our company promises all the accessories can be changed for new
ones because of quality problems within 3 years,and the boiler host
has Lifetime Warranty.
Q4: Can we get installation and commissioning service?
A4: Yes, our engineers are available for your need, but the relative
cost needs to be paid.
Q5: What about the delivery?
A5: Usually it will take about 35-45 days for pressured boilers, and
25-30 days for non-pressured boilers. Double confirmation shall be
necessary before ordering.
Q6: Where is your company or your factory?
A6: Our factory is located in Taikang County Industry Cluster, Henan
Province, China.
Q7: What’s your MOQ?
A7: Only 1 set, if you have more than that, you will get a more
favorable price.
Q8: Can we visit your factory?
A8: Yes, welcome for your coming at any time. If you need, we can pick
you up when you get to our province.
Before the Quotation Please Confirm the following parameters first,
then we can recommend right boiler model for you with good price.
- Steam boiler or steam boiler ?
- Steam capacity and work pressure ?
- Boiler fuel is coal/biomass or oil/gas ?
- Could you tell us the boiler is used in which working process ?
