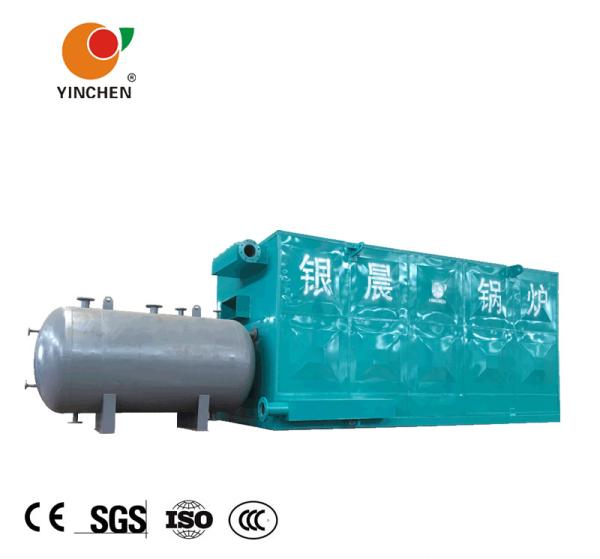

Best Sale YLW Low Pressure Chain Grate Automatic Industrial Biomass Hot Oil Boiler

YLW horizontal chain grate automatic industrial biomass hot oil boiler is a chain grate fuel feeding mode, the fuel can be grade II bituminous coal and biomass particles (sawdust, bagasse, straw, etc.). The heat carrier is heat conducting oil. The circulating pump force and heat transfer medium circulates in the liquid, transfers heat to the user equipment for heating, and then returns to the heating furnace for reheating. Because of working in liquid state, the YLW type coal/biomass fired hot oil boiler is safe and reliable.

1. Prolong the boiler service life according to the cloesed circulation heating, and protect the environment.

2. Increase the heating area by adopting the pipe coil structure.

3. Reduce the temperature difference between exhaust gas and hot oil outlet according the countercurrent flow.

4. The customers can obtain the temperature below 350 degree at a very low pressure.So this thermal oil boiler has the features of low pressure-high temperature.

5. Precise temperature control byu adopting complete running and safety monitoring devices.

Technical Parameters

Type	YLW-1200	YLW-1400	YLW-1750	YLW-2350	YLW-2900	YLW-3500
Rated thermal Power(MW)	1.25	1.4	1.78	2.5	3.0	3.5
Thermal efficiency(%)	78	78	78	78	78	78
Rated steam Pressure(Mpa)	1.0	1.0	1.0	1.0	1.0	1.0
Maximum working Temperature(℃)	350	350	350	350	350	350
Capacity(m³)	1.1	1.2	1.8	2.6	3.3	3.8
Circulating oil(m³/h)	110	130	160	180	220	240
Piping connection Diameter(DN)	125	125	150	150	200	200
System installed Capacity(kw)	40	40	40	56	66	100
Length	6	6	6	6	6.2	6.2
Width	2.2	2.6	2.6	2.8	3	3
Height	4	4.5	4.8	5.5	6	6

Basic Information:
Product or Series (we sell): Grade B Boiler (Steam Boiler, Hot Water
Boiler, Thermal Oil Heater)
Brand: YINCHEN
Number of Employee: above 350
Factory Size: more than 60,000square meter
Factory Location: Henan Taikang County Industry Cluster
Number of Production Lines: above 10

Consultation service: Experienced technicians guidance is available on the phone, and on the internet.
Installation service: One or more engineers will be dispatched to the installation site to help install the customers’ boilers.
Training service: We also provide necessary training about boiler operation and daily maintenance to local workers.
Warm service: Based on customers’ request and budget, our experts make efficient, reliable solutions, and we produce strictly following customers’ order. Every customer has the chance to visit our workshops before placing the order.

Do you have other worries ? send to US .

Henan Yinchen Boiler Group is a professional boiler manufacturer,the company was founded on over 1976 years experience in the design and manufacture of industry advanced technology.
We have ISO9001:2008 international quality system certification,and are specialized in the production of steam boiler,hot water boiler,thermal oil heater,autoclave and other pressure vessels.
We have an independent R&D institution, We have 18 professional designers and engaging in the development of advanced boiler equipments.
We have professional test equipments and detection system.
Our products have been exported to South Asia,Southeast Asia,Middle East,Africa,and Europe,which indicating the company has achieved successful international development,and continuing to gain more market and customer's trust.
Yinchen boiler group offering the complete servicing,spares and planned maintenance, combed with in-depth technical support.
Yinchen brand has gained the global reputation through the guarantee of quality,unrivalled dependability,long term durability, unique innovation technology features, stable performance in heat generation and transfer systems and professional service.
