    Industrial Biomass Fired Steam Boiler 6 Ton 8 Ton 10 Ton Conveyor Feeding Mode

    Ask Lasest Price
    Brand Name : Yinchen
    Model Number : DZH/DZL
    Certification : ISO SGS CE
    Price : usd 5000-59800 set
    Payment Terms : L/C, T/T, MoneyGram
    Supply Ability : 5000 set month
    Delivery Time : 1-20 working days
    • Product Details
    • Company Profile

    Industrial Biomass Fired Steam Boiler 6 Ton 8 Ton 10 Ton Conveyor Feeding Mode

    Industrial 1Ton 2Ton 4Ton 6Ton 8Ton 10Ton China Industrial Biomass Boiler Supplier


    Apply Fuel: coal, wood/wood pellets, biomass, rice husk pellets, straw pellets and so on.
    Payment Terms: 30% T/T in advance ,70% before factory delivery.
    Lead Time: About 10-15 days after received the down payment.

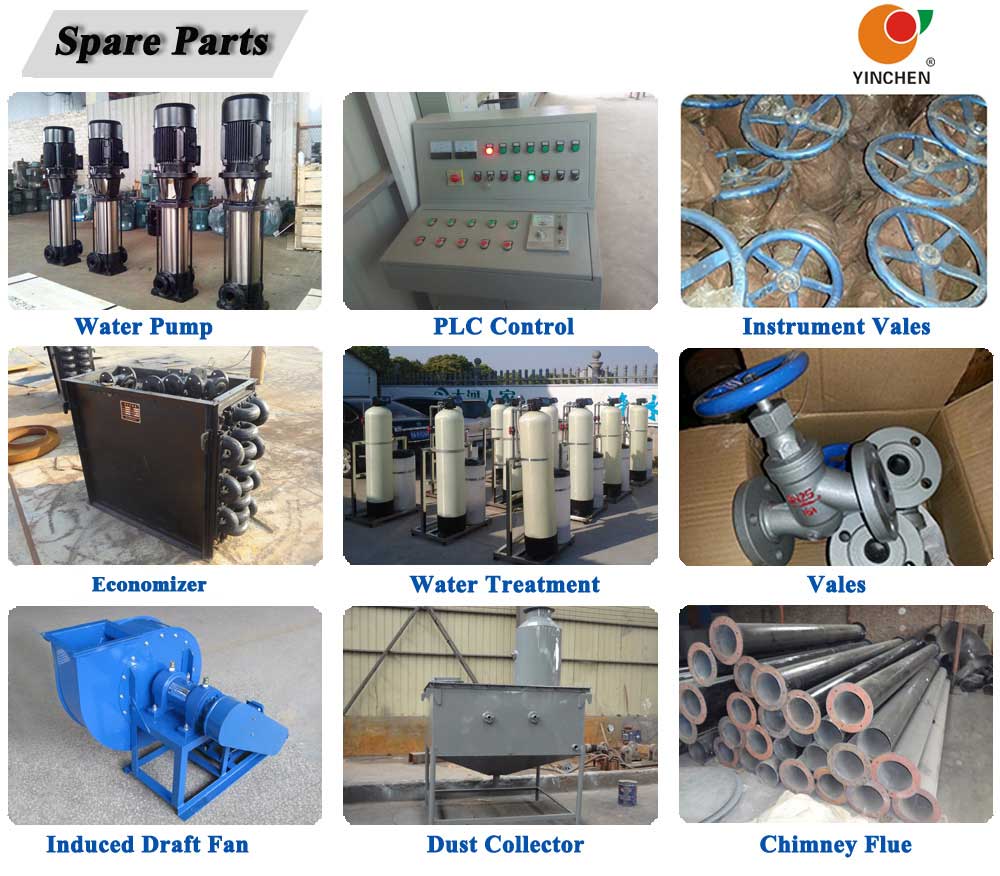

    Main Parts


    Chain Grate Stoker

    The scale chain grate boiler could resist the temperature as high as 1200℃, long working life. It has a low coal leakage because of the small gap. High automatic degree, decrease labor cost. Convenient for maintenance, it could be done without boiler shut down.


    Economizer

    Economizer is the boiler tail flue in the boiler feed water heated to the steam pressure under the saturated water heating surface, because it absorbs relatively low temperature flue gas, reducing the smoke exhaust gas temperature, saving energy, improve the efficiency.


    Steam Header

    The steam header is used to distribute the steam generated by the boiler during operation to the pipelines. The sub-cylinder system is a pressure vessel, and its pressure-bearing capacity and capacity should correspond to the supporting boilers.


    Feed Pump

    Feed pump is deaerator tank with a certain temperature of the water supply to the boiler. It is suitable for conveying clean water with temperature lower than 110C or other non-corrosive liquids whose physical and chemical properties are similar to water. It is widely used in boiler feed water and urban water supply in industrial and mining enterprises.


    Boiler advantages


    1. DZL boiler is fast assemble or assemble, compare with bulk boiler, it saves 30% installation period and installation cost.
    2. By using spirally corrugated tubes, the boiler has excess output, and sustained, generally, the actual output is 10~15% higher than it shown on the nameplate.
    3. The temperature rise up quickly with high thermal efficiency (83%).
    4. Low original emission concentration of smoke, energy saving and environmental protection.
    5. Low requirement of water quality.
    6. The 100% NDT make sure the boiler life span more than 20 years.
    7. Based on customers’ requirement, the combustion equipment can be designed as chain grate, moving grate, fixed grate, and reciprocal grate.
    8. Yinchen Boiler has got CE certificate of DZL series coal fired boiler, also, we can offer SGS, BV inspection.


    Parameters of Steam Boiler

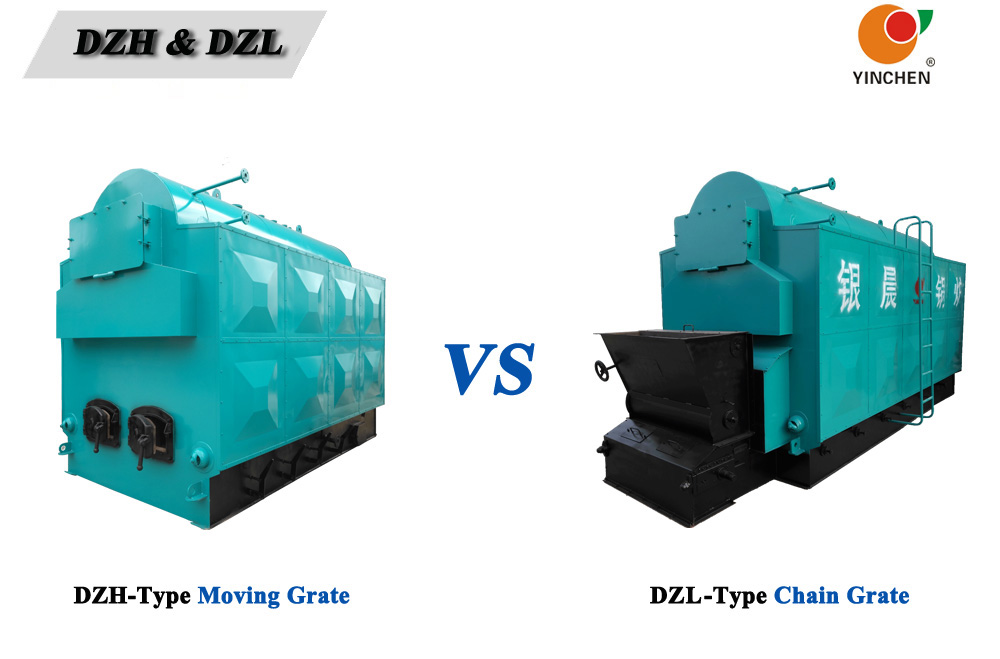

    DZH Series New-type Fire and Water Tube Steam Boiler
    TypeRated Evaporation
    (t/h)
    Rated Steam Pressure
    (Mpa)
    Steam
    Temperature
    (℃)
    Heating Area
    (M³)
    Grate Area
    (M³)
    Size
    L×W×H
    (m)
    DZH1-0.7- AII10.717036.51.93.9×1.85×3.12
    DZH1-1.0- AII11.018439.41.93.9×1.85×3.12
    DZH2-0.7- AII20.717153.63.744.5×2.24×3.32
    DZH2-1.25- AII21.2519473.63.744.5×2.24×3.32
    DZH4-1.25- AII41.25194146.033.93

    5.3×2.44×3.6

    Type

    Rated Evaporation

    (t/h)

    Rated Steam Pressure

    (Mpa)

    Feed Water Temperature

    (℃)

    Steam

    Temperature

    (℃)

    Grate

    Area

    (㎡)

    Exhaust

    Fume

    Temperature

    (℃)

    Thermal

    Efficiency

    (%)

    Maximum

    Shipping

    Size

    (mm)

    DZL1-1.0-

    AII

    11.0201841.9157.380.335488×2000×2832
    DZL2-1.6- AII21.6202053.4163.180.545694×2550×3364
    DZL4-1.6- AII41.6202055.1816980.286470×2820×3668
    DZL6-1.6- AII61.6202057.55166.380.948244×2951×3550
    DZL10-1.6- AII101.610520512151.280.917700×3200×3500
    DZL15-1.6- AII151.610520518161.681.507650×3350×3500
    DZL20-1.6- AII201.610520622.85150.681.447665×3800×3565

    Feeding System Introduction:


    1. Conveyor feeding mode (For biomass particles)


    2. Elevating automatic feeding (For coal)


    3. Blast feeding (For size of less than 50mm of small sawdust, or rice husk)


    4. Screw feeder

    Industrial 1Ton 2Ton 4Ton 6Ton 8Ton 10Ton China Industrial Biomass Boiler Supplier
    Industrial 1Ton 2Ton 4Ton 6Ton 8Ton 10Ton China Industrial Biomass Boiler Supplier
    Company Information

    Henan Yinchen Boiler Group Co.,LTD. was founded at the beginning of 2001, which has a registered captical of 51.66 million. Its headquarters is in the industrial district in Fucaolou town, Taikang county of Henan province. The production factory is adjacent to Yong Deng high-speed,and the 311 national road is also through this district,so it has very convenient transportation conditions.Besides, it is one of the key leading enterprises which firstly get the National Boiler Manufacturing license. With the manufacturing license qualification of "B" class boiler and "D2"class pressure vessel, it is director of China Industrial Boiler Association, member unit of China Welding Association and the enterprise of emphasizing the contract and credit in Henan province. The products have already passed ISO9001-2000 international quality system certification.


    Our service


    1. We will reply your inquiry in 24 hours.

    2. Experienced staffs will answer all your questions in fluent and professional English.

    3. Customized design is available.


    Guarantee: One-year warranty and full-life service for all of our steam boilers;

    A full range of original spare parts are available for all YINCHEN boilers

    Pre-sales Service: Based on customers’ request and budget, our experts make efficient, reliable

    solutions, and we produce strictly following customers’ order. Every customer has the chance to visit

    our workshops before placing the order. And we help to arrange cars, hotels, and the translators for

    every visiting customer.

    After-sales Service: Experienced technicians guidance is available on the phone, and on the internet.

    One or more engineers will be dispatched to the installation site to help install the customers’ boilers.

    We also provide necessary training about boiler operation and daily maintenance to local workers.


    Boiler FAQ

    Q1. What is your patment term?

    A1: Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other payment way.


    Q2. Are your company is a trading company or a factory?

    A2: We are a 20 years old industrial boiler factory, specializing in OIL and GAS and Coal fired steam boiler. Now we are one of leading industrial boiler manufacturers in China.


    Q3: What is the warranty for boilers?

    A3: Our company promises all the accessories can be changed for new ones because of quality problems within 3 years,and the boiler host has Lifetime Warranty.


    Q4: Can we get installation and commissioning service?

    A4: Yes, our engineers are available for your need, but the relative cost needs to be paid.


    Q5: What about the delivery?

    A5: Usually it will take about 35-45 days for pressured boilers, and 25-30 days for non-pressured boilers. Double confirmation shall be necessary before ordering.


    Q6: Where is your company or your factory?

    A6: Our factory is located in Taikang County Industry Cluster, Henan Province, China.


    Q7: What’s your MOQ?

    A7: Only 1 set, if you have more than that, you will get a more favorable price.


    Q8: Can we visit your factory?

    A8: Yes, welcome for your coming at any time. If you need, we can pick you up when you get to our province.


    Attention

    Before the Quotation Please Confirm the following parameters first, then we can recommend right boiler model for you with good price.

    1. Steam boiler or hot water boiler ?
    2. Steam capacity and work pressure ?
    3. Boiler fuel is coal/biomass or oil/gas ?
    4. Could you tell us the boiler is used in which working process ?
