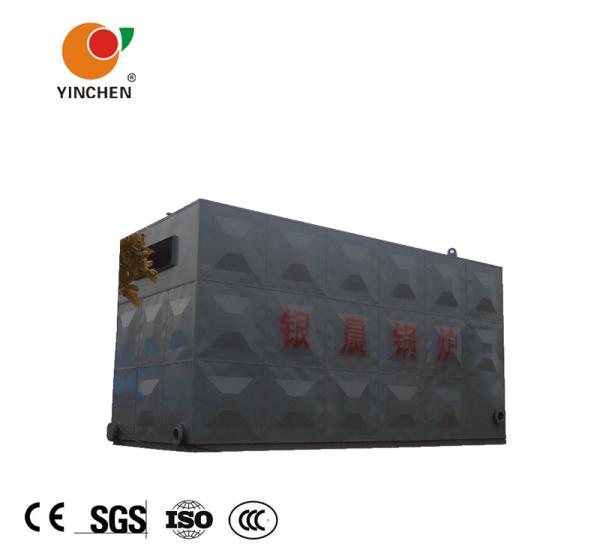

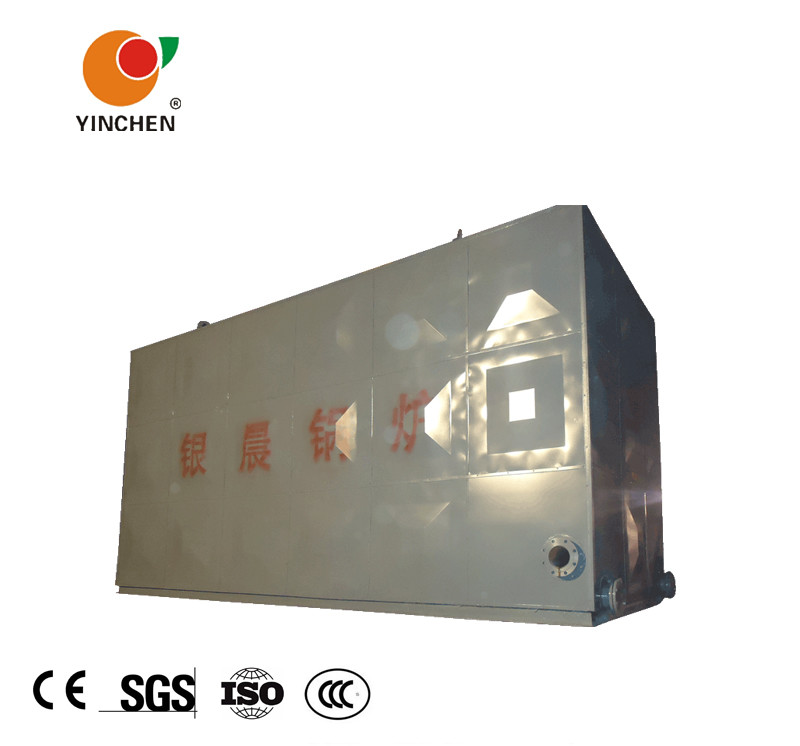

yinchen brand YLW/YHW series 1.25-3.5mw thermal power 1.0mpa 350C
max working temperature coal fired thermal oil heater
YLW/YHW horizontal biomass coal fired thermal oil boiler is an safe
and energy saving boiler with working characteristics of low
pressure (1.0 MPa) and high temperature (350℃). The combustion
equipment is chain grate, the fuel could be II class bituminous
coal and biomass pellet (wood chips, bagasse, straw, etc.). The
heat carrier is heat conduction oil, the circulating pump force
heat transfer medium circulating in liquid phrase, and transfer
heat to heat user equipment, then return to the heating furnace for
reheating. Because of working in liquid state, the vertical type
coal/biomass fired thermal fluid heater is safe and reliable.
Biomass pellet fuel is a significant achievement in scientific
research of fuel application,which makes uses of crop wastes
including straw,rice stalks,firewood.wood cutting,peanut
shells,sunflower seeds,beet dreg and bark,gets them processed
through crushing,mixing,squeezing and drying.biomass pellet fuel is
know as green coal and a clean energy source. As fuel of boiler,it
has long combustion period and high temperature in
strengthen-combustion furnace,meanwhile,which is economical and
practical, beings no pollution to the environment and an efficient
and energy-conserved environment-friendly product substituting for
wood,coal and natural gas.
1. Low steel consumption,high air leakage efficient, high coal
leakage volume,
suitable to burn I II soft coal.
2. Adoption of automatic temperature control function is made to
achieve stable
heating and precise temperature adjustment.
3. It adopts perfect running control and safety monitoring device
with safety,reliability
and easy operation.
4. Fast temperature rise,high thermal efficiency, with overload
capacity at a certain
degree to ensure output of boiler.
technical parameters
| Type | YLW-1200 | YLW-1400 | YLW-1750 | YLW-2350 | YLW-2900 | YLW-3500 |
Rated thermal
Power(MW) | 1.25 | 1.4 | 1.78 | 2.5 | 3.0 | 3.5 |
| Thermal efficiency(%) | 78 | 78 | 78 | 78 | 78 | 78 |
Rated steam
Pressure(Mpa) | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
Maximum working
Temperature(℃) | 350 | 350 | 350 | 350 | 350 | 350 |
| Capacity(m³) | 1.1 | 1.2 | 1.8 | 2.6 | 3.3 | 3.8 |
| Circulating oil(m³/h) | 110 | 130 | 160 | 180 | 220 | 240 |
Piping connection
Diameter(DN) | 125 | 125 | 150 | 150 | 200 | 200 |
System installed
Capacity(kw) | 40 | 40 | 40 | 56 | 66 | 100 |
| Length | 6 | 6 | 6 | 6 | 6.2 | 6.2 |
| Width | 2.2 | 2.6 | 2.6 | 2.8 | 3 | 3 |
| Height | 4 | 4.5 | 4.8 | 5.5 | 6 | 6 |
Basic Information:
Product or Series (we sell): Grade B Boiler (Steam Boiler, Hot
Water
Boiler, Thermal Oil Heater)
Brand: YINCHEN
Number of Employee: above 350
Factory Size: more than 60,000square meter
Factory Location: Henan Taikang County Industry Cluster
Number of Production Lines: above 10
Consultation service: Experienced technicians guidance is available on the phone, and on
the internet.
Installation service: One or more engineers will be dispatched to the installation site
to help install the customers’ boilers.
Training service: We also provide necessary training about boiler operation and
daily maintenance to local workers.
Warm service: Based on customers’ request and budget, our experts make
efficient, reliable solutions, and we produce strictly following
customers’ order. Every customer has the chance to visit our
workshops before placing the order.
Do you have other worries ? send to US .
